Electrical engineers and electricians follow predefined wiring color codes while wiring houses, commercial buildings and industrial panel boards. It is mandatory to know the electrical wiring color codes before attempting any kind of repair works yourself.

The electrical wiring color codes followed is slightly different in every part of the world depending on the standards they follow. Even there are different color codes for AC and DC wires. For example, in Canada, you can find Red, black and blue wires for three-phase, whereas, in Australia, it is Yellow, blue and black. In this article, let us discuss wiring codes followed in different countries.

International wiring colour codes

IEC Standard wiring color codes

The international standard, IEC 60446 (International Electro-technical Commission, an organization that prepares and publishes electrical and electronics technologies) defines the color codes as below:

IEC color code for a three-phase AC system,

The preferred wiring color codes for a three phase four wire system is as follows:

  • Phase – 1: Brown
  • Phase – 2: Black
  • Phase – 3: Grey
  • Neutral: Light blue
  • Earth or protective conductor: Green/Yellow

For a Single-phase AC system,

The preferred wiring color codes for a single-phase four-wire system is as follows:

  • Phase: Brown
  • Neutral: Light blue
  • Earth or protective conductor: Green/Yellow
Wiring color code followed in European Union and UK

For a 2-Wire Unearthed DC system:

  • Positive: Brown
  • Negative: Grey

For a 2-Wire Earthed (of a Negative Earthed) DC Circuit system:

  • Positive: Brown
  • Negative: Blue

For a 2-Wire Earthed (of a Positive Grounded) DC Circuit system:

  • Positive: Blue
  • Negative: Grey

3-Wire Earthed DC:

  • Positive: Brown
  • Mid-Wire: Blue
  • Negative: Grey

Protective Earth: Green-Yellow

The above-mentioned color codes are followed in the European Union, United Kingdom, China, Hong Kong, Argentina, Russia, Ukraine, Belarus, Kazakhstan and Singapore.

NEC Standard wiring color codes

National Electrical Code is followed in the United States and sometimes in Canada. NEC mandates the color codes for neutral and protective ground as grey and yellow-green respectively. NEC does not instruct any requirements for other conductors. The color code adopted in the US is as follows:

The preferred color codes shall be:

  • Phase – 1: Black (for 120, 208, or 240 V), Brown (for 277, or 480 V).
  • Phase – 2: Red (for 120, 208, or 240 V), Orange (for 277, or 480 V).
  • Phase – 3: Blue (for 120, 208, or 240 V), Yellow (for 277, or 480 V).
  • Neutral: White (for 120, 208, or 240 V), or Grey (for 277, or 480 V)
  • Earth or protective conductor: Green/Yellow or Green or bare copper conductor.
  • For single-phase, Black (for 120V) or Red (for 277) is used for Line and Grey is used for Neutral.
Wiring color code followed in the US and Canada

Australian Standard / New Zealand standard for wiring colour codes

AS/NZS prohibits the usage of yellow, green, yellow-green, black, and sky blue colors for phases. Any colors other than the listed can be used. The commonly used color code is as follows:

  • For a three-phase supply – Red, white and blue colours are used.
  • For a single-phase supply – Red or brown is used for line and black or sky blue is used for neutral.
  • For Earth or protective conductor – Green/Yellow or Green or bare copper conductor can be used.
Wiring color code followed in Australia and New Zealand

India Standard– single-phase and three phase wire colour code

The electrical wire color code in India is the same as the old UK color codes.

  • Phase – 1: Red
  • Phase – 2: Yellow
  • Phase – 3: Blue
  • Neutral: Black
  • Earth or protective conductor: Green/Yellow or green or bare conductor
Wiring color code followed in India
Wiring color code followed in India

Chinese Standard

  • Phase – 1: Yellow
  • Phase – 2: Green
  • Phase – 3: Red
  • Neutral: Black or Blue
  • Earth or protective conductor: Green/Yellow or green or bare conductor
Wiring color code followed in China

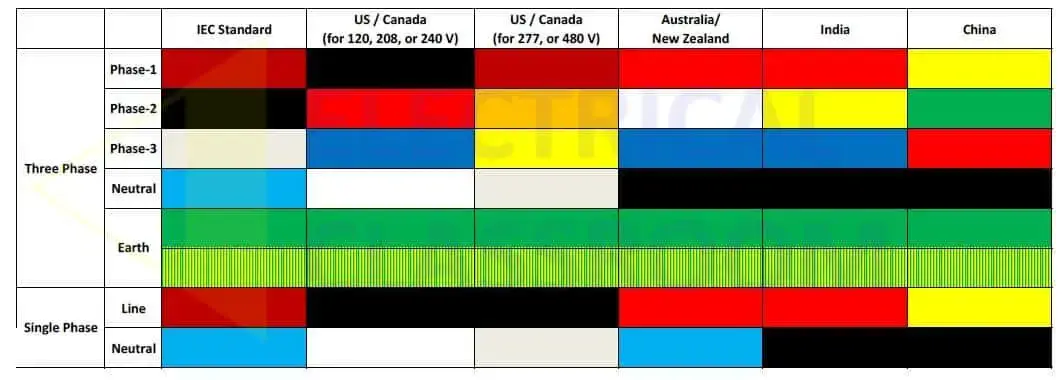

International wiring colors – Old and New Uk wire color codes

European countries abide by International Electrotechnical Commission codes while the USA, Canada, New Zealand, and Australia have their own codes. The United Kingdom was following its British Standard BS 7671 till March 2006, which is followed by a few Asian countries even today.

wiring colours table flat- Electrical Classroom
Credit: Phase3

Reference: https://ztlabels.com/standards/dc-power-circuit-wiring-color-codes/
